80M Windmill Blade Transport Adaptor Trailer

The 75m wind blade transporter flat push top can be matched with a heavy-duty low-bed or axle semi-trailer. It is usually used to transport wind turbine blades to the top of the mountain for the second time.

Product Introduction:

In the wind turbine blade transportation industry, Shandong Starway Vehicle Co.,Ltd mainly has a complete industrial chain of blade long-distance transport vehicles, blade secondary transport tooling vehicles, nacelles, hubs, generator transport vehicles, etc. Starway Vehicle provides various transportation solutions for users in the wind power industry.

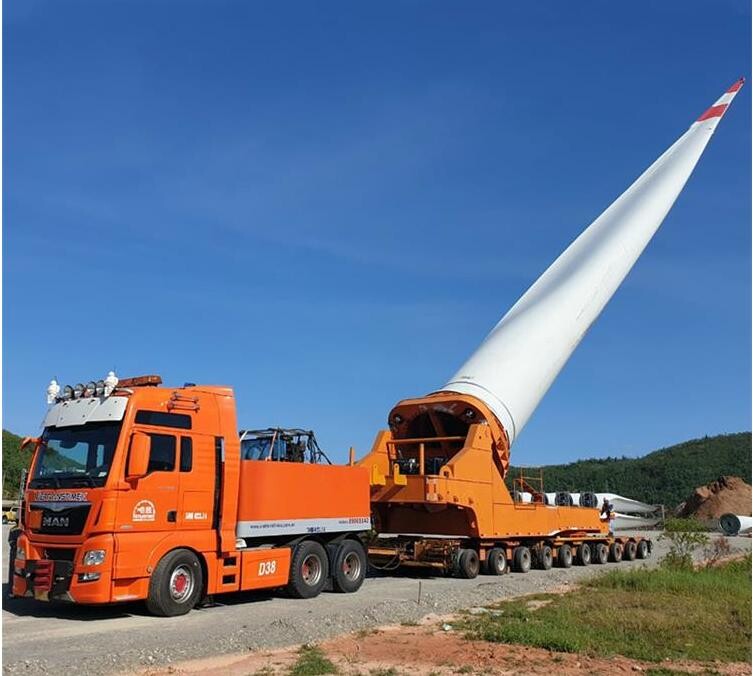

Compared with the retractable wind blade long-distance transport vehicle, the blade secondary transport tooling vehicle can lift, swing and rotate the blades. It can avoid various obstacles such as trees, mountains, and wires on the way, effectively solving the problem of wind blade transportation in steep mountainous areas, and the wind blades are directly lifted by the rotating frame. In strong winds, the blades can rotate 360 degrees to avoid the wind, and the counterweight participates in the balance to ensure transportation safety.

This model is a separate windmill blade reverse transport adapter, which you can match with your own heavy-duty low-bed or axle semi-trailer.

75-80m wind blade transporter push-type top export-

Parameters:

Brand: Starway brand wind blade transporter push-type top

Size: 11090mm*3700mm*5000mm

Applicable blades: Applicable to 121-156 wind turbine blades, up to 80m

Loading capacity: 23.5 tons

Maximum rotation angle: 360°

Lifting cylinder: cylinder diameter 280mm lifting angle 0-55

Gooseneck with movable platform: 1m

Hydraulic station: 31KW four-cylinder diesel engine

Advantages:

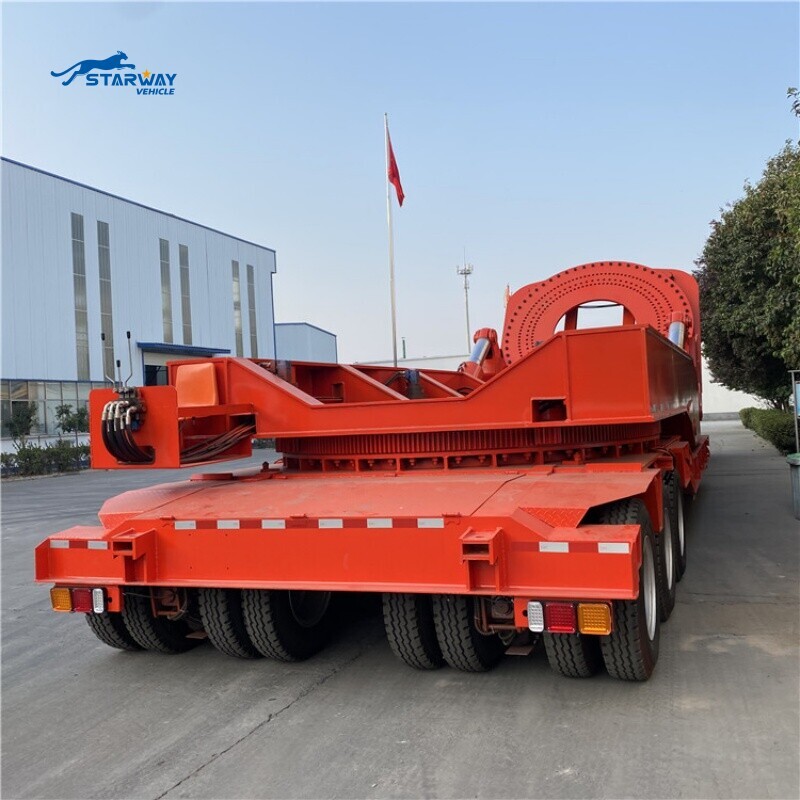

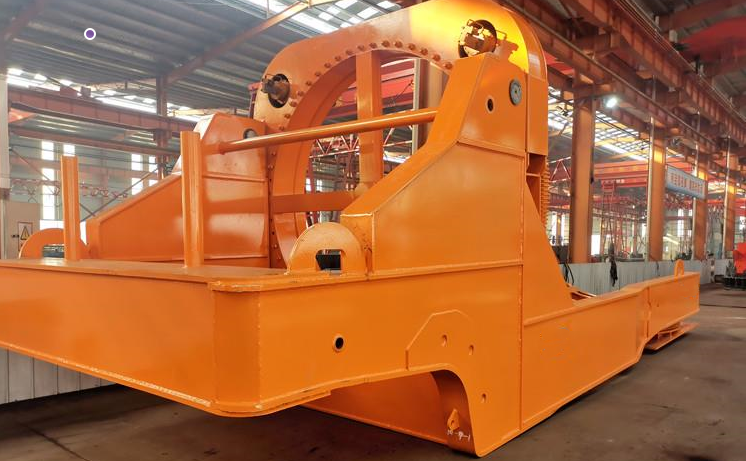

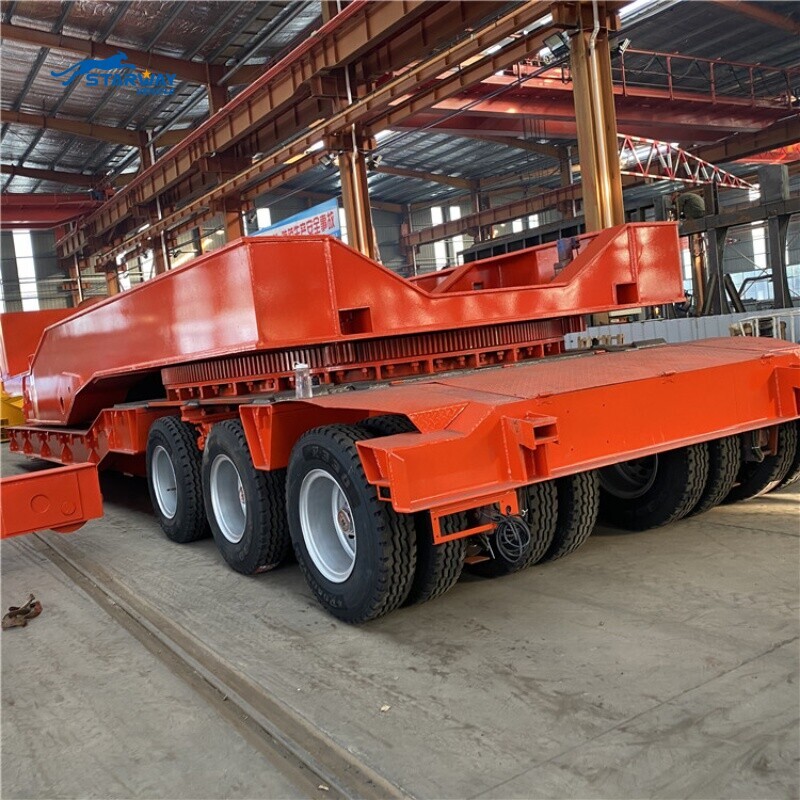

When using, the wind turbine blades can be fixed to the rotating platform, and the rotating platform itself can rotate 360 degrees, plus the fixing device itself can also rotate. When encountering complex road conditions that are difficult to pass directly, the blades can be rotated to any angle suitable for passing, which greatly increases the vehicle's passing performance and makes wind power transportation safer and more convenient.

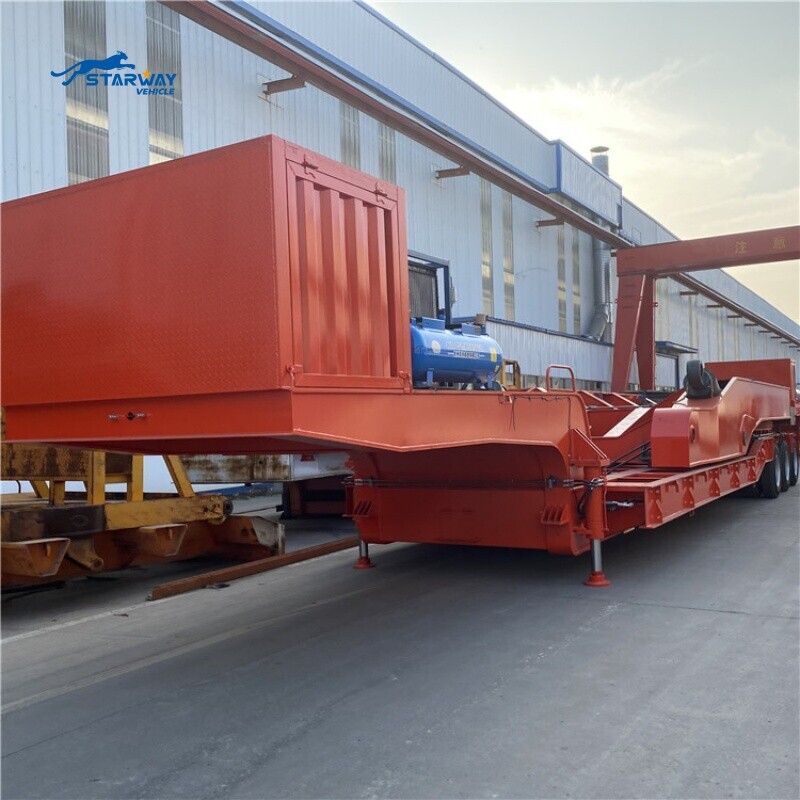

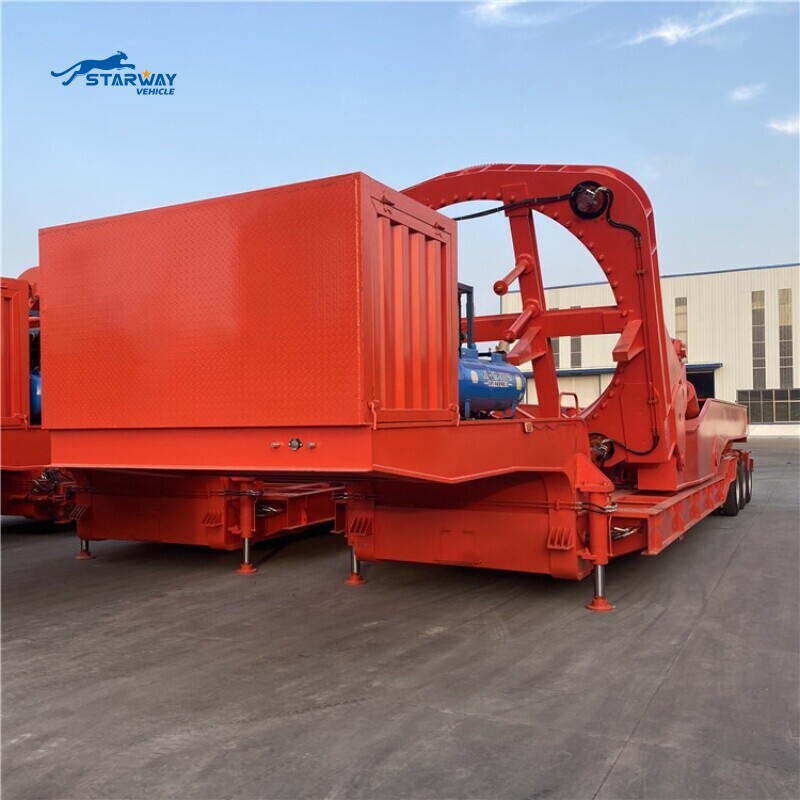

In order to solve the problem of unstable center of gravity of the vehicle caused by longer blades during rotation, a counterweight box is designed in the opposite direction of the blade installation position. Ballast can be added as needed, and the distance between the counterweight box and the rotating platform can also be adjusted with a hydraulic cylinder as needed, thus avoiding the risk of rollover caused by imbalance of the center of gravity of the vehicle due to transporting long blades as much as possible.
