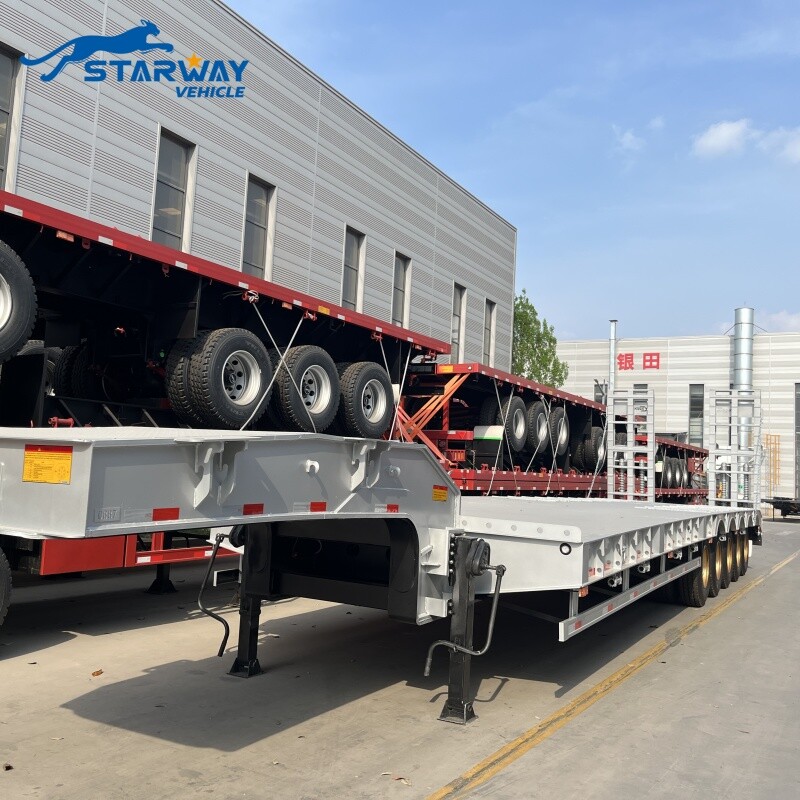

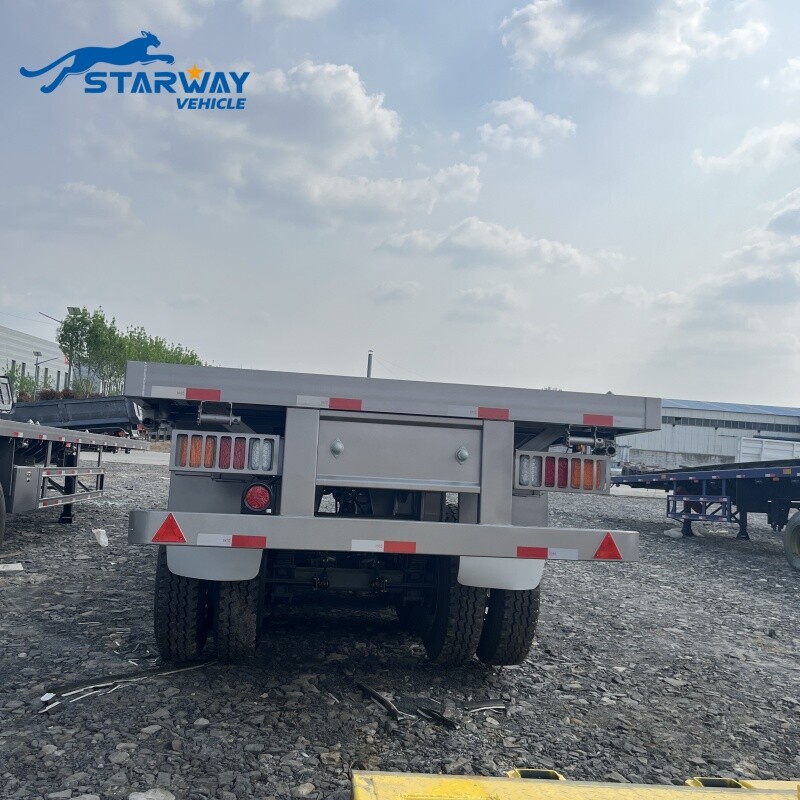

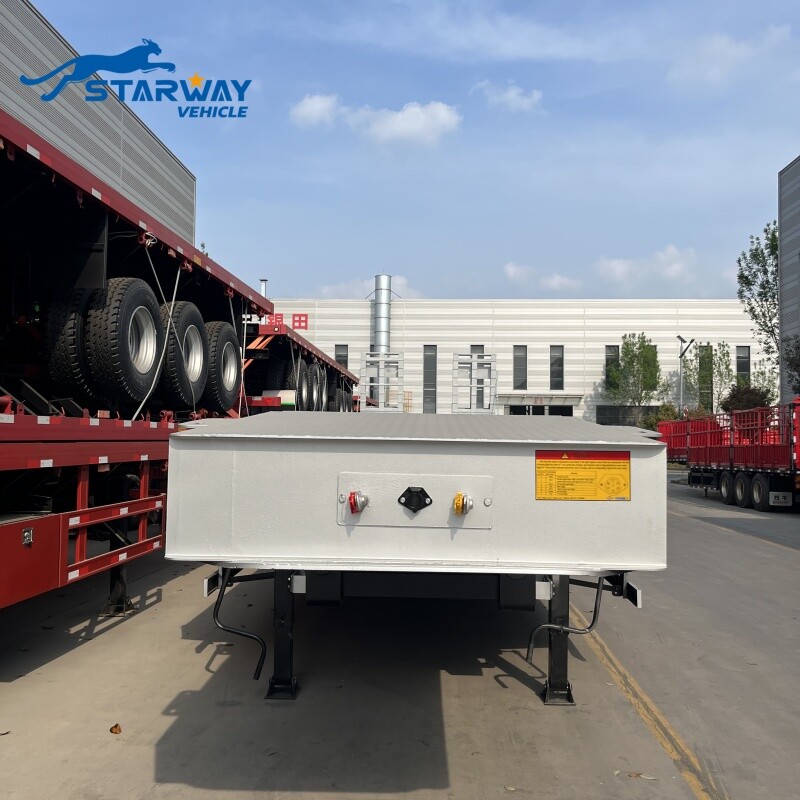

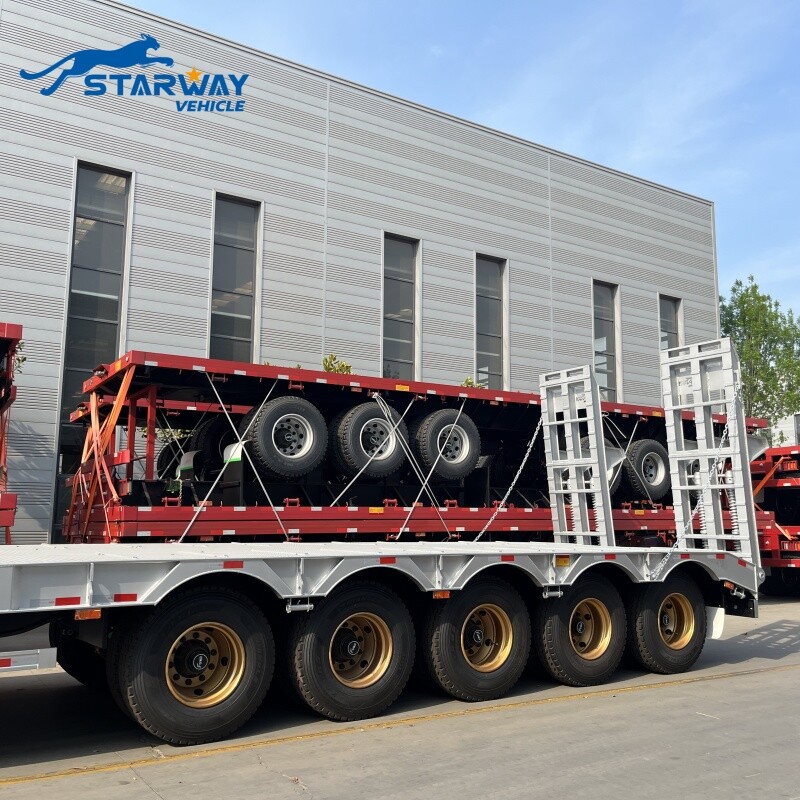

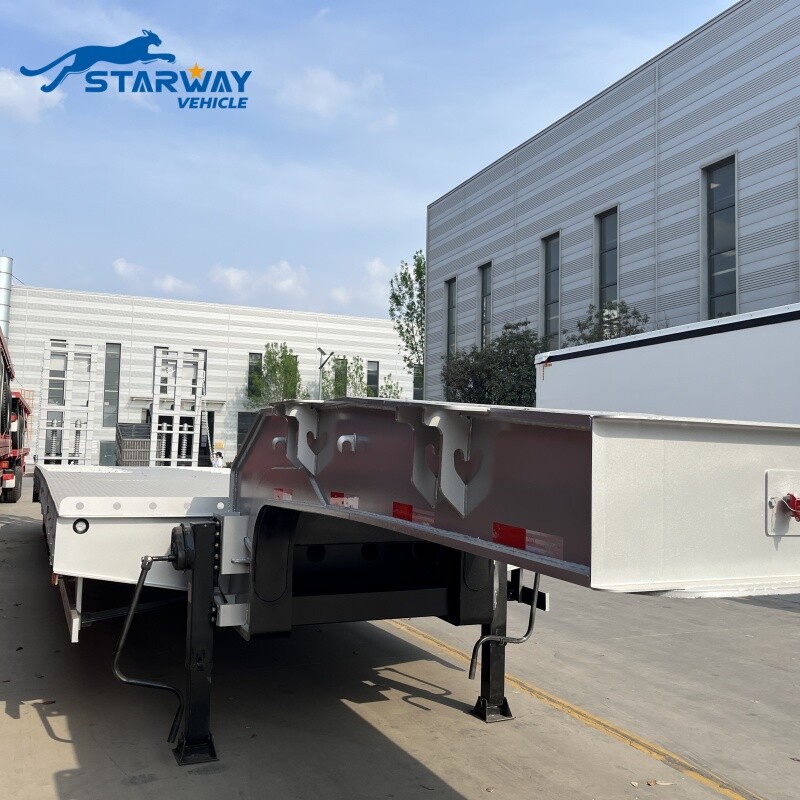

80 Ton 5 axles Lowbed Trailer

2 axles/ 3 axles/ 4 axle/ Multi axle
Mechanical or air supension (American or German)
High integral strength and lightweight
Safe and reliable operation
Tel:+8618364783601
Email:sales@starwayvehicle.com
WhatsApp:+8618364783601
PRODUCT DESCRIPTION

Product Description


Lowbed Truck Semi Trailer Manufacture 3-10 Axles Lowbed Semitrailer/Lowbed Semi Trailer

We can design and manufacture lowbed semi trailer according to your exact requirements, the following specifications for your reference.


Product parameters


Dimensions (Optional)11000-18000×2500-3200×2980mm (According to customer demand , Standard Length is 13500mm       )
loading capacity13 ton axle * 3 / 40-60 tonMore configuration requirement please contact supplier
16 ton axle *3 / 60-80 ton
20 ton axle *3 / 80-120 ton
25 ton axle *3 / 120-150 ton
ManufacturerShandong Luyi machinery co., ltd.
Axle specs.10/12/13/14/16/20/25T , FUWA ,YAHUA , Starway  or BPW Brand
Suspensionmechanical or air supension (American or German)
Rim6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20
King PinJOST 2" or 3.5" traction pin
Support legsJOST, FUWA or YAHUA brand 28T
Wheelbase7180/6680/6260+1310+1310mm,Or other
Steel Spring8/8/8, 10/10/10, 12/12/12 pieces per axle

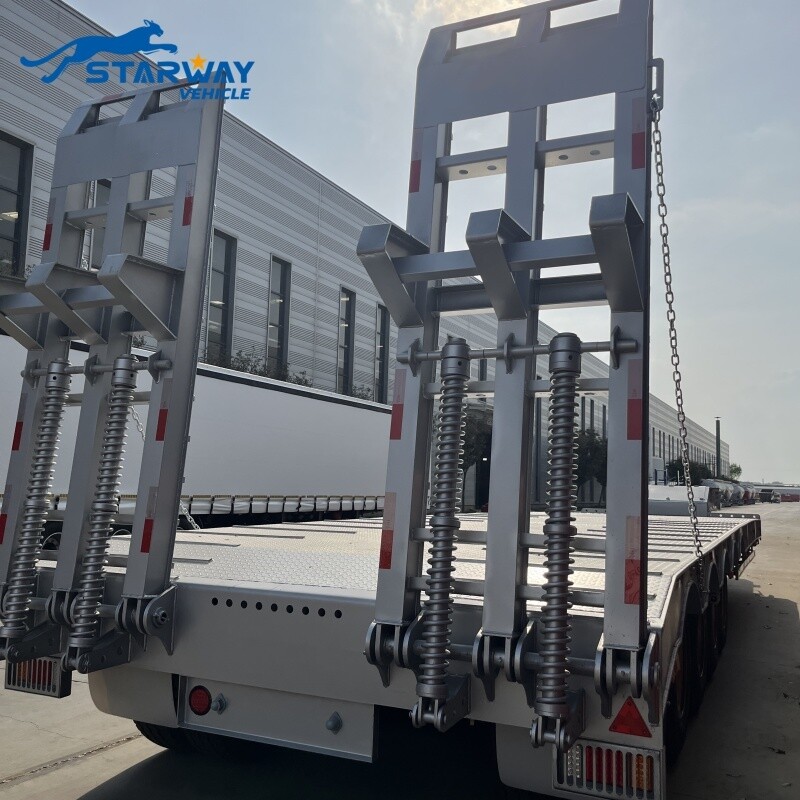

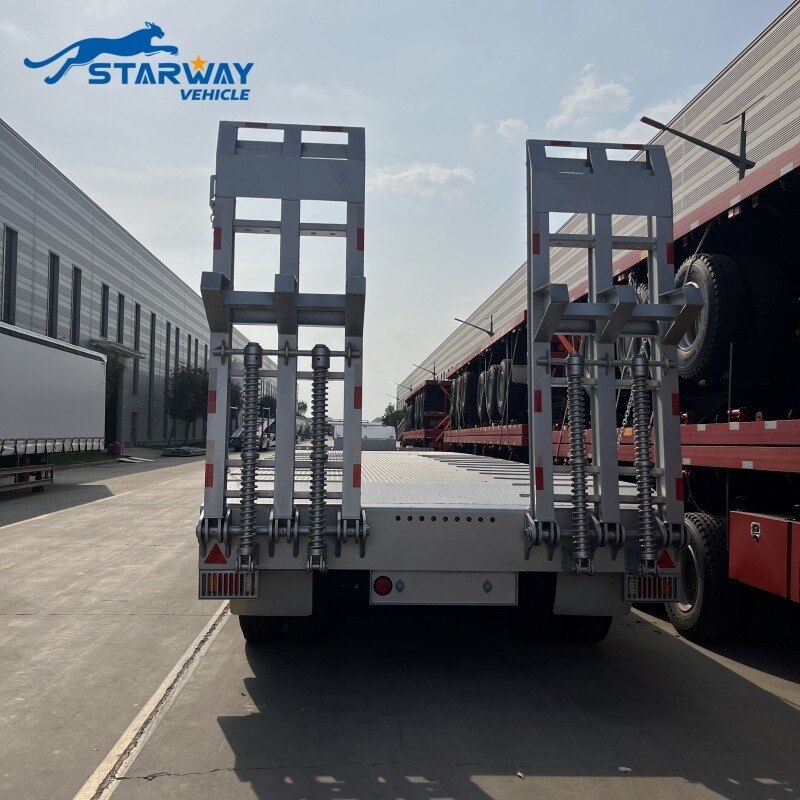

LadderManual or hydraulic automatic
Electrical system24V,7 pin socket,One set 7-core standard Cable
Tire8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 (Other Size / Single Super Tire Contact with Supplier)
Number of Tire8 or 12 or 16 pieces
Spare Tire Carriers2 pieces
The material of Main beam

Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm,

down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel.

Side beam16mm-25mm channel steel (Material is Q235 carbon steel)
Platform plate5/6/7 mm Diamond Plate
BrakeKemi Brand of China
Brake ChamberWABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); One piece of 45L air tanks
ABS systemoptional
LightTail lamp with turn signal, brake light & reflector, side lamp etc
Tool box1 sets(waterproof type)
Spare tire carrier1 sets(Patent type)
Color and logoAccording to customer demand
PaintingComplete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint
PackingPolish with wax before shipping


Structure diagram


组 36@1x.jpg


2 axles 60 ton detachable gooseneck lowbed trailer


3 axles 80 ton detachable gooseneck lowbed trailer


3 axles detachable gooseneck lowbed semi trailer


3 axles lowbed trailer  6- ton


4 lines 8 axles 120ton lowbed trailer


4axles detachable gooseneck lowbed semi trailer


120 ton 4 lines 8 axles lowbed trailer


detachable gooseneck lowbed trailer for sale


transport excavtor lowbed trailer

OUR ADVANTAGE

Intelligence Production Equipment

Improve intelligent level, and create topping quality,STARWAY VEHICLE regards topping production line and equipment as development basis for over 30 years.

Independent technology R&D

It uses international and donestic leading technology s core for 30 years,is engaged in innovation and application of new material technology and technique,realizeds upadate.

Truck Trailer Examination

Perfect Inspection equipment and advaced inspection methods,over 200 inspection items,ensure product of STARWAY VEHICLE

Production Process

Absorbs industrial intelligence of foreign and domestic advanced production lines actively, promotes innovationand update of production equipment continuously.

Welding Standard

National first-level welder supervision, with Fuil automatic welding line.30minutes more weldina time per process

Steel Standard Design

Full Thickness High Strength Steel Titanium content 0.98% Ensure toughness and strength of Trailer frame and beam.

Design Standard

42 years of research and development by Australian engineers, rational analysis,42 toughness Rib Design

Parts Standard

Accessories Matched the standards of American Transportation Association(DOT)

ABOUT US

Shandong Starway Vehicle Co.,Ltd is China′s leading provider of semi trailer solution for transportation and logistic industry. The company has been awarded Provincial Municipal Meritorious Enterprise, Star Enterprise and Advanced Enterprise. As one of top ten Enterprises of truck trailer in China, Starway Vehicle is committed to offering high quality and reliable equipment and services for modern transportation. As the leading professional semi trailer manufacturer, we provide OEM/ODM semi trailer products to customers all over the world. Every year, Starway Vehicle exports thousands of different types of semi trailers worldwide. By 2024, we have established close business relationships with customers from all over the world.

  • 2.Special Shape Automatic Welding Process.jpg
  • 3..Tanker Trailer Plate Cutting Machin.jpg
  • 4.Tanker Trailer Plate Rolling Process.jpg
  • 5..Tanker Trailer Plate Automatic Welding Machine.jpg
  • 7.Tanker Trailer Steel Plate Bending Mahince.jpg
  • 8.Tanker Trailer X-RAY Room Examination.png
MESSAGE
Submit
SIMILAR RECOMMENDED
FAQ

Q: Are you a manufacturer or trading company?

A: We are a professional semi - Trailer supplier, we produce and export ourselves.
You are welcomed to visit our factory.

Q: What kind of payment do you accept?

A: We accept T/T and L/C at most.
If you want to use others payment, contact me for more info.

Q: What's your delivery time?

A: It depends on the products.

Products: Delivery time
Low bed trailer, Container trailer, skeleton trailer, side wall trailer: 10 days
Fuel tanker trailer, bulk cement trailer: 20 days
Special trailer, like detachable gooseneck trailer, hydraulic modular trailer: 30 working days
