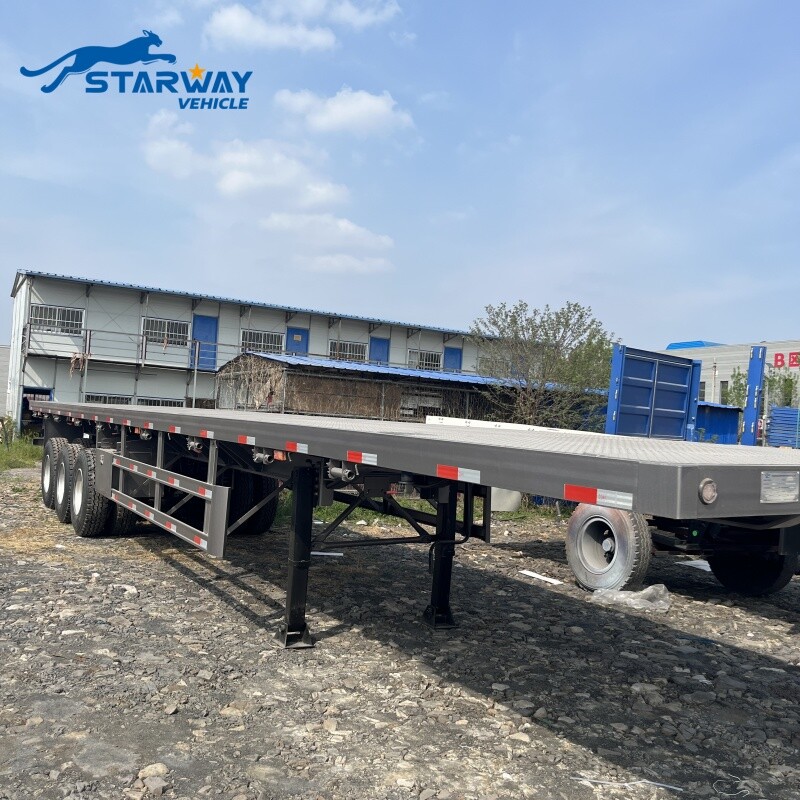

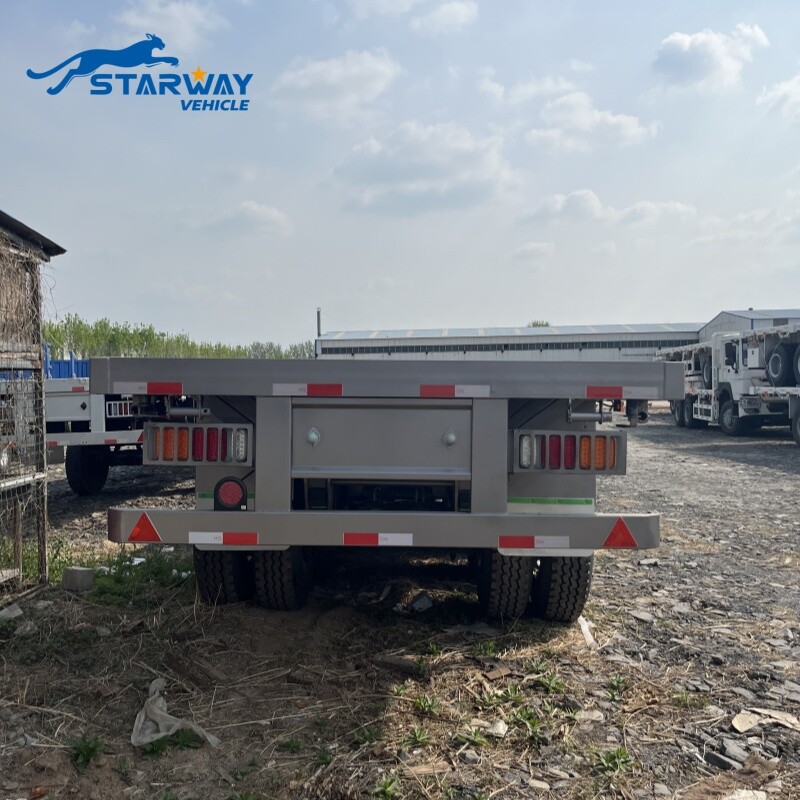

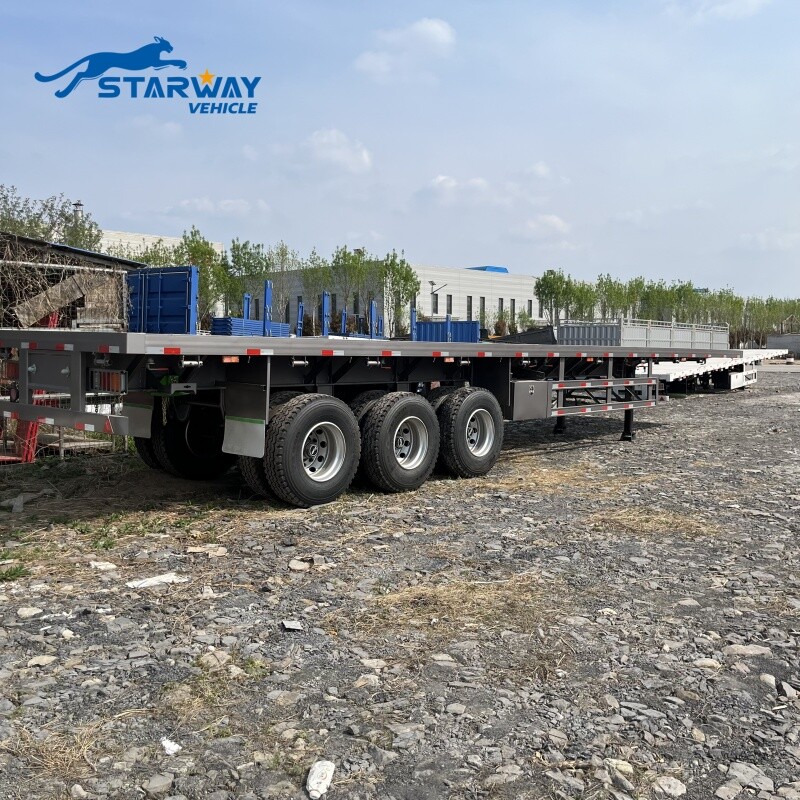

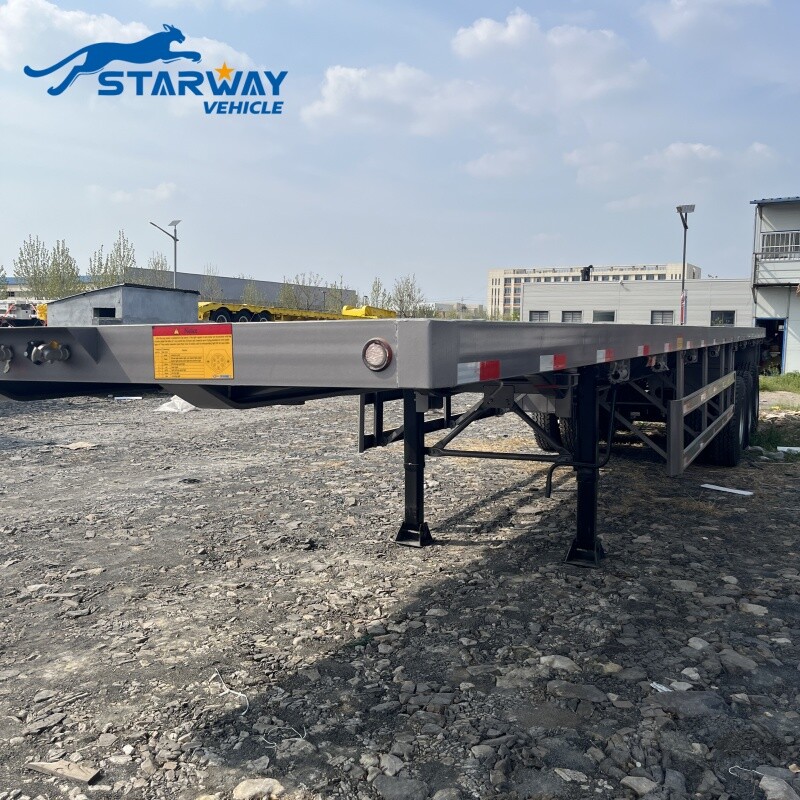

Tri-Axles 40ft & 20ft Flatbed Semi-Trailer Transport Container

2 axles/ 3 axles/ 4 axle/ Multi axle
Mechanical suspension or Air bag suspension
40-80 ton
High integral strength
Tel:+8618364783601
Email:sales@starwayvehicle.com
WhatsApp:+8618364783601
PRODUCT DESCRIPTION

Product Description


Starway's container flatbed semi-trailers are not only suitable for transporting standard containers but also capable of carrying other types of cargo, such as large machinery and special equipment. ustomers can choose between 2-axle, 3-axle, or 4-axle configurations based on their specific needs, ensuring enhanced load capacity and adaptability for different transportation requirements.Equipped with advanced coating technologies like KTL electrophoresis and powder spraying, these vehicles offer excellent corrosion resistance and a long service life, ensuring both durability and aesthetic appeal.Starway's container flatbed semi-trailers stand out for their multi-purpose functionality, flexible axle configurations, high-quality components, advanced coating technology, and professional design, making them efficient, durable, and reliable transportation tools. Whether for standard container transport or special equipment handling, Starway offers tailored solutions to meet diverse customer needs.



NameStarwayI flatbed semi trailer
Overall dimension12500 *2500 * 1550mm((According to customer demand))
Loading capacity30-150T
Tare Weight6.5-10T
Axle 2 axles/ 3axles/4 axle/ Multi axle, 13 T/16T/20T BPW / FUWA / Fuhua
Rim8.00-20/8.5-20/8.8-20  China Brand
Tire12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specificationcan be Optional)
SuspensionMechanical suspension(German Type or America Type) or Air suspension
Spring leaf90(W)mm×13(Thickness)mm×10(Layer)/100mm×12mm×12(specificationcan be Optional)
Wheel base(mm)6880+1310+1310.
KingpinJOST brand 2.0 or 3.5 inch bolts type or Welding type
Steel Spring 8/8/8, 10/10/10, 12/12/12 pieces per axle
The material of Main beam

Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm,

 down plate thickness is 16mm-25mm; Material is Q345B Carbon Steel.

Side beam16mm-25mm channel steel (Material is Q235 carbon steel)
Brake chamber6 double brake chamber
Landing gearJOST/FUWA/Yahua brand 28T(two speed or single speed)
Twist LocksFour, Eight or Twelve pieces(lifting type or Twist Screw Type) Optional locks for loading containers
Platform plate3mm Checkered steel plate
Brake systemDual Line braking system
 Electrical system24V, 7 pin socket, One set 7-core standard Cable
ValveWABCO/KANGJIAN valve
Tool box1set standard tool box( waterproof type)
Spare tire carrier1 pieces( Patent type)
LightTail lamp with turn signal, brake light & reflector, side lamp etc
PaintingComplete Chassis sand blasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint
Shipping TermsBy bulk cargo carrier, RORO or 40HQ container




Structure diagram


图片 2.png



OUR ADVANTAGE

Intelligence Production Equipment

Improve intelligent level, and create topping quality,STARWAY VEHICLE regards topping production line and equipment as development basis for over 30 years.

Independent technology R&D

It uses international and donestic leading technology s core for 30 years,is engaged in innovation and application of new material technology and technique,realizeds upadate.

Truck Trailer Examination

Perfect Inspection equipment and advaced inspection methods,over 200 inspection items,ensure product of STARWAY VEHICLE

Production Process

Absorbs industrial intelligence of foreign and domestic advanced production lines actively, promotes innovationand update of production equipment continuously.

Welding Standard

National first-level welder supervision, with Fuil automatic welding line.30minutes more weldina time per process

Steel Standard Design

Full Thickness High Strength Steel Titanium content 0.98% Ensure toughness and strength of Trailer frame and beam.

Design Standard

42 years of research and development by Australian engineers, rational analysis,42 toughness Rib Design

Parts Standard

Accessories Matched the standards of American Transportation Association(DOT)

ABOUT US

Shandong Starway Vehicle Co.,Ltd is China′s leading provider of semi trailer solution for transportation and logistic industry. The company has been awarded Provincial Municipal Meritorious Enterprise, Star Enterprise and Advanced Enterprise. As one of top ten Enterprises of truck trailer in China, Starway Vehicle is committed to offering high quality and reliable equipment and services for modern transportation. As the leading professional semi trailer manufacturer, we provide OEM/ODM semi trailer products to customers all over the world. Every year, Starway Vehicle exports thousands of different types of semi trailers worldwide. By 2024, we have established close business relationships with customers from all over the world.

  • 2.Special Shape Automatic Welding Process.jpg
  • 3..Tanker Trailer Plate Cutting Machin.jpg
  • 4.Tanker Trailer Plate Rolling Process.jpg
  • 5..Tanker Trailer Plate Automatic Welding Machine.jpg
  • 7.Tanker Trailer Steel Plate Bending Mahince.jpg
  • 8.Tanker Trailer X-RAY Room Examination.png
MESSAGE
Submit
SIMILAR RECOMMENDED
FAQ

Q: Are you a manufacturer or trading company?

A: We are a professional semi - Trailer supplier, we produce and export ourselves.
You are welcomed to visit our factory.

Q: What kind of payment do you accept?

A: We accept T/T and L/C at most.
If you want to use others payment, contact me for more info.

Q: What's your delivery time?

A: It depends on the products.

Products: Delivery time
Low bed trailer, Container trailer, skeleton trailer, side wall trailer: 10 days
Fuel tanker trailer, bulk cement trailer: 20 days
Special trailer, like detachable gooseneck trailer, hydraulic modular trailer: 30 working days
