3 axles Refrigerated Trailer For Sale

Size :13,600mmx2,600mmx4,000mm
Inner Size :1,3440x2,430x2,520 mm
Cooling Machine:Thermo kind brand or Kaily cooler
Payload :31 ton
Tel:+8618364783601
Email:sales@starwayvehicle.com
WhatsApp:+8618364783601
PRODUCT DESCRIPTION

A refrigerated semi-trailer is a temperature-controlled transport vehicle equipped with a professional refrigeration system. It is primarily used for long-distance cold chain logistics of temperature-sensitive goods such as food, pharmaceuticals, and chemicals. By maintaining a constant or low-temperature environment, it ensures the freshness and safety of goods during transportation, making it a critical component of the cold chain logistics system.

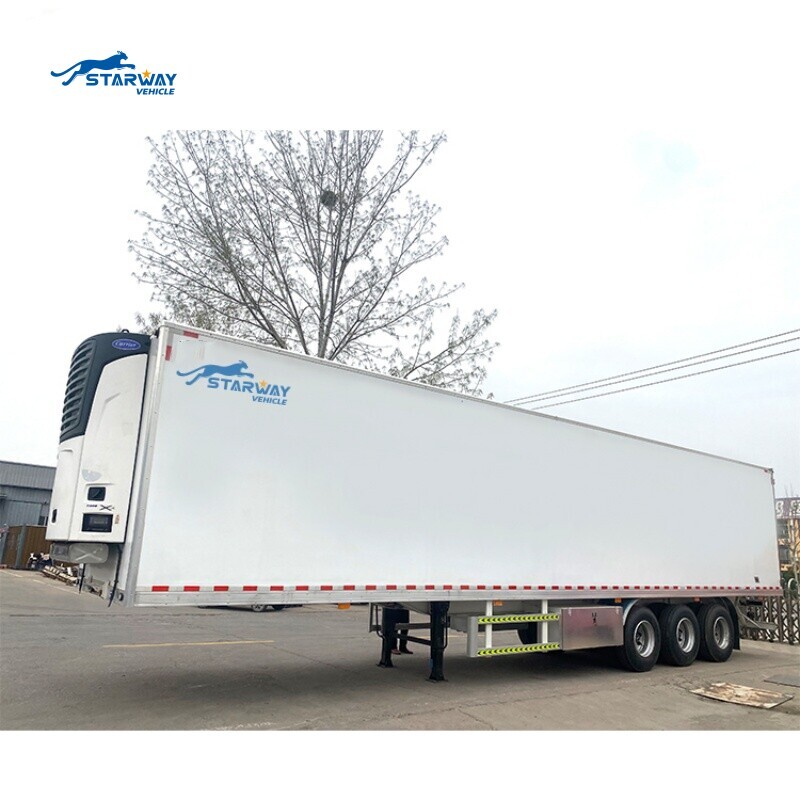

Refrigerator Van  Semi Trailer For Sale (1).jpg


 The specification of Frigerated Semi Trailer

Cooling machine

Thermo king brand

Dimension

13,600mmx2,600mmx4,000mm

Inner size

13440x2430x2520 mm

Axle Brand

13Ton   Fuwa brand Axle

Tyre

12R22.5 x12 pcs  Linglong brand

Material

Side Glass plate ,steel insulation board Foam  layer mateial,

Material floor

Aluminum

a) Top

82 mm

b) Sides

62 mm

c) Bottom

84-120 mm

d) Door

76 mm

Top and bottom side beams

front wall outer panel

outer panel

outer door panel

outer roof

Front wall inner panel

inner panel

inner door lining

Inner roof

sub floor

wear plate

Side panel air guide

Floor form

floor reinforcement

floor leaker

backdoor type

rear door hinge

Number of lock levers

back door frame

Front frame

water leaker plug

The height limit in the cabin

high strength weathering steel paint

high strength weathering steel paint

stainless steel

high strength weathering steel paint

stainless steel

Food Grade Coated Aluminum Sheet

food grade stainless steel

food grade stainless steel

Food Grade Coated Aluminum Sheet

stainless steel

Aluminum profile wear plate, about 400mm high

Inside panel with sunken vertical air guide

Air guide 40mm rectangular aluminum floor

Aluminum profile

Standard, two front and rear

opposite door

hot dip galvanized hinge

Hot-dip galvanized lock bars, 2 per door, 4 in total

high strength weathering steel paint

high strength weathering steel paint

Have

Have

Brake system

2 line pneumatic brake system.


Type 30/30 spring brake system on two axles.


ISO type air coupling at front of the semi-trailer. Optional ABS

Brake chamber

Six double chamber

Electrical system

24V,7 Pole plug. The whole set of LED lights ,include Tail lamp with turn signal, brake light & reflector, side lamp etc.

Colour and Marking

Color and pattern according to customer requirements

Lights & Wiring

Harness: oil and vapour proof cable.

Front: nil.

Side:

Mark lamp 3Pcs/side, LED.

Reflector 3Pcs/side

Turning lamp 1Pcs/side, LED.

Rear Bump:

Reverse lamp R-L 2Pcs, LED.

Turning lamp R-L 2Pcs, LED.

Brake lamp R-L 2Pcs, LED.

Register plate light

Rear top: nil.

Brand of Wiring:

Mudguard

Steel over suspension and the upper coupler.Mud flaps rigid plastic at the rear.

Fire Extinguisher

8kg , 2Pcs. Carbon steel extinguisher holder located on the landing gear on the curb side.

Drains hose

water drains hose 2", installed at the back of spill molding

Spare wheel bracket

1set


Carbon steel, basket type, located behind the landing gear.

Painting

Polyurethane medium Aluminium gray, applied over epoxy primer on carbon steel elements



OUR ADVANTAGE

Intelligence Production Equipment

Improve intelligent level, and create topping quality,STARWAY VEHICLE regards topping production line and equipment as development basis for over 30 years.

Independent technology R&D

It uses international and donestic leading technology s core for 30 years,is engaged in innovation and application of new material technology and technique,realizeds upadate.

Truck Trailer Examination

Perfect Inspection equipment and advaced inspection methods,over 200 inspection items,ensure product of STARWAY VEHICLE

Production Process

Absorbs industrial intelligence of foreign and domestic advanced production lines actively, promotes innovationand update of production equipment continuously.

Welding Standard

National first-level welder supervision, with Fuil automatic welding line.30minutes more weldina time per process

Steel Standard Design

Full Thickness High Strength Steel Titanium content 0.98% Ensure toughness and strength of Trailer frame and beam.

Design Standard

42 years of research and development by Australian engineers, rational analysis,42 toughness Rib Design

Parts Standard

Accessories Matched the standards of American Transportation Association(DOT)
