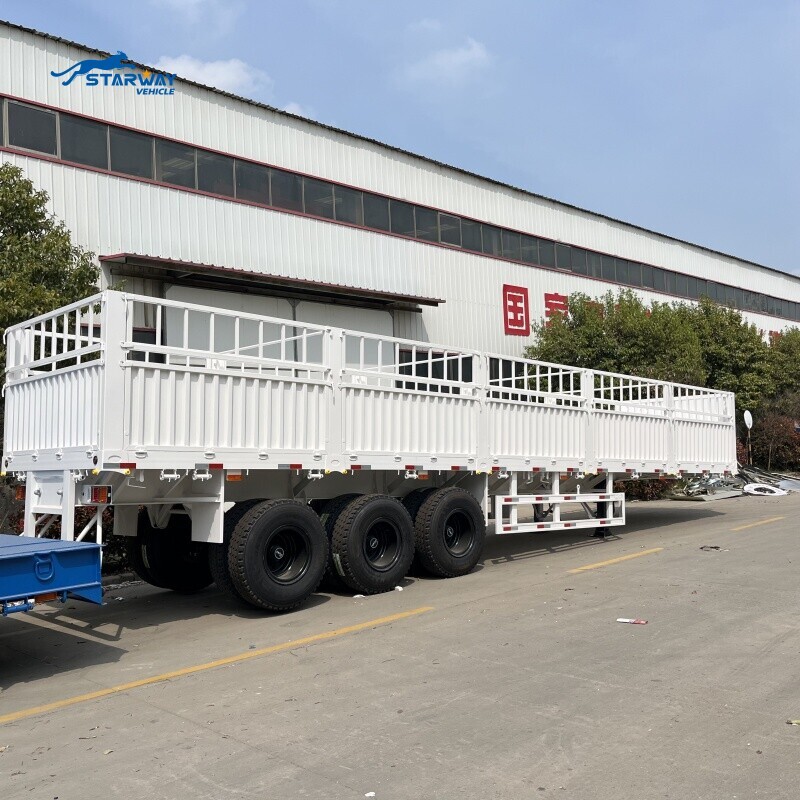

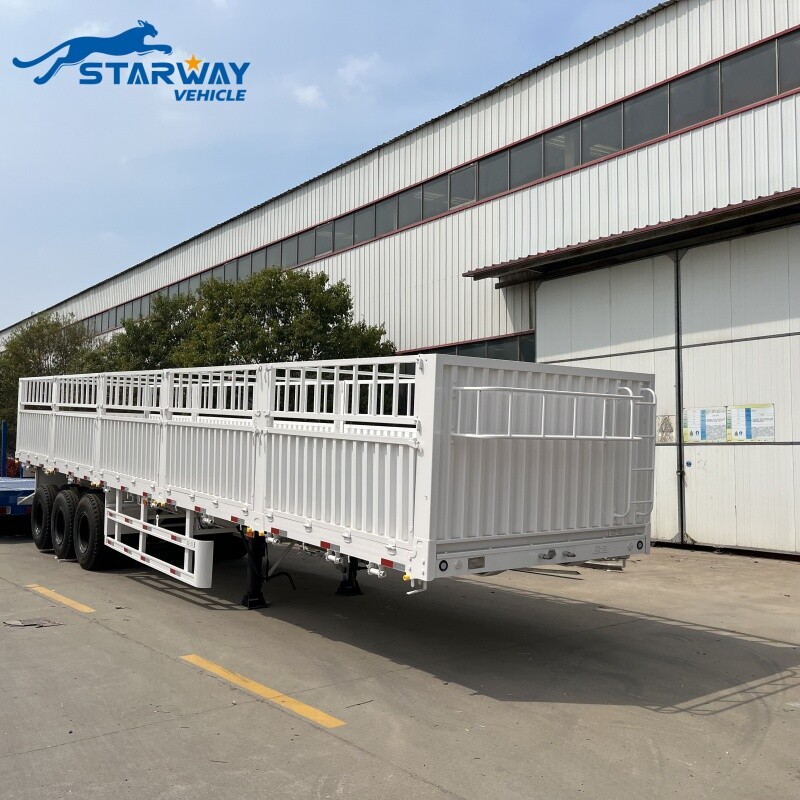

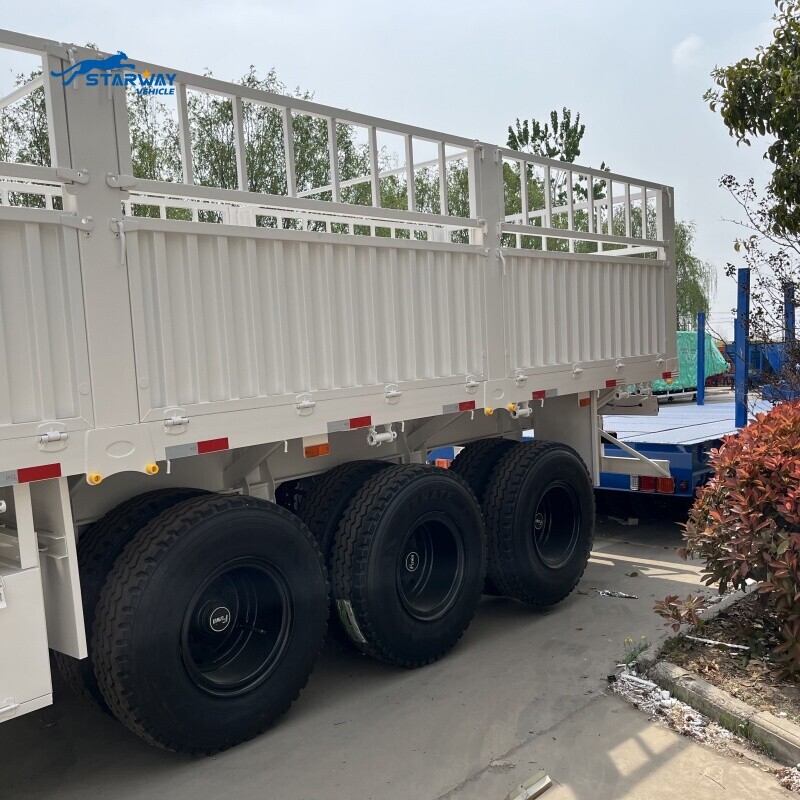

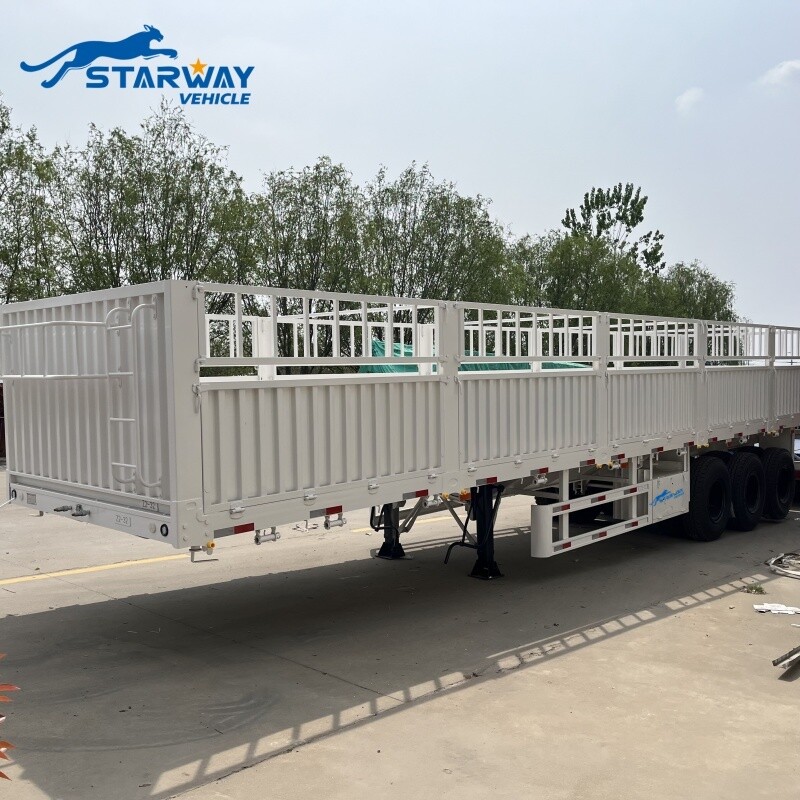

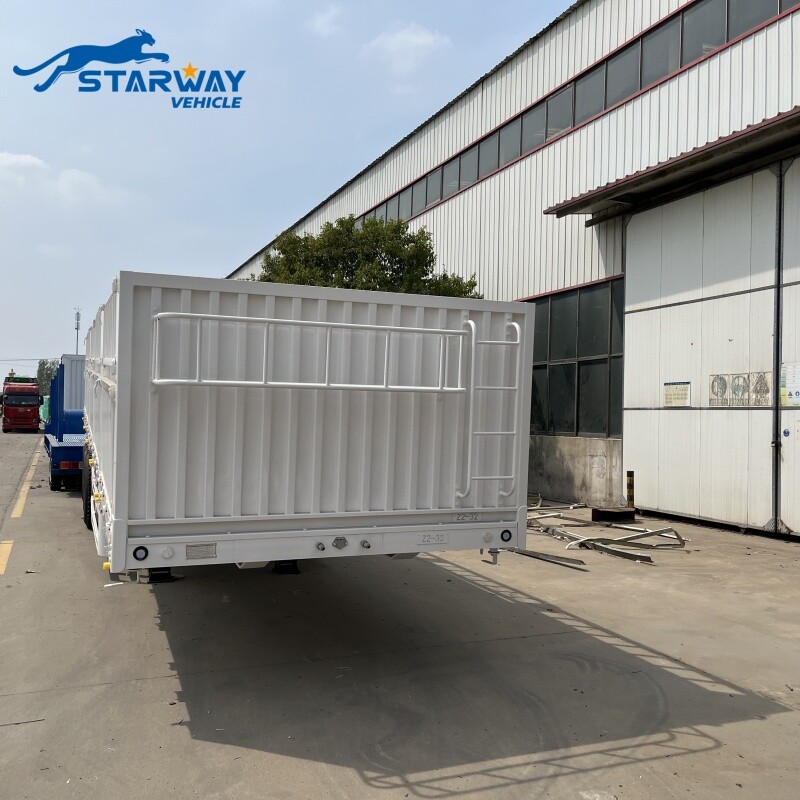

Tri Axle 60 Ton Fence Cargo Trailer

2 axles/ 3 axles/ 4 axle/ Multi axle
Customized: For different color / different type
Loading Capacity: 40T-80T
Tel:+8618364783601
Email:sales@starwayvehicle.com
WhatsApp:+8618364783601
PRODUCT DESCRIPTION

Starway produce 3 axles fence cargo semi trailers with 60 ton loading capacity and 600mm to 800mm Side Walls, and the side wall fence semi trailer also can transport 40ft container or one 20ft container after removing the side walls or frame. all the key component and parts used to make up the Side Wall Fence Trailer are purchased from famous brand, so our side wall fence semi trailer are able to withstand a long time of use, exhibiting great strength.


Product Description

Sturdy Substructure_ fence cargo.jpg

detachable fence_副本.jpg

Sturdy beams and side beams


The bottom of the trailer is reinforced with structural steel, so the trailer is not easily deformed when transporting overweight cargo. At the same time, the cross beam is made of T700 high-strength steel, which has a stronger load-bearing capacity.

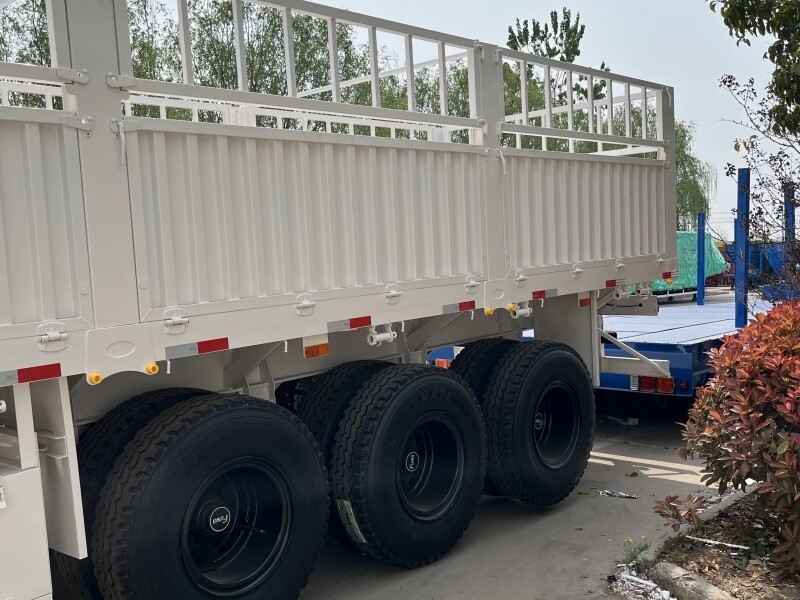

Removable fence


The 3-axle fence cargo semi-trailer is equipped with a removable fence, which makes it more versatile. It can transport 20-foot or 40-foot containers like a flatbed semi-trailer, and can also reduce shipping cost

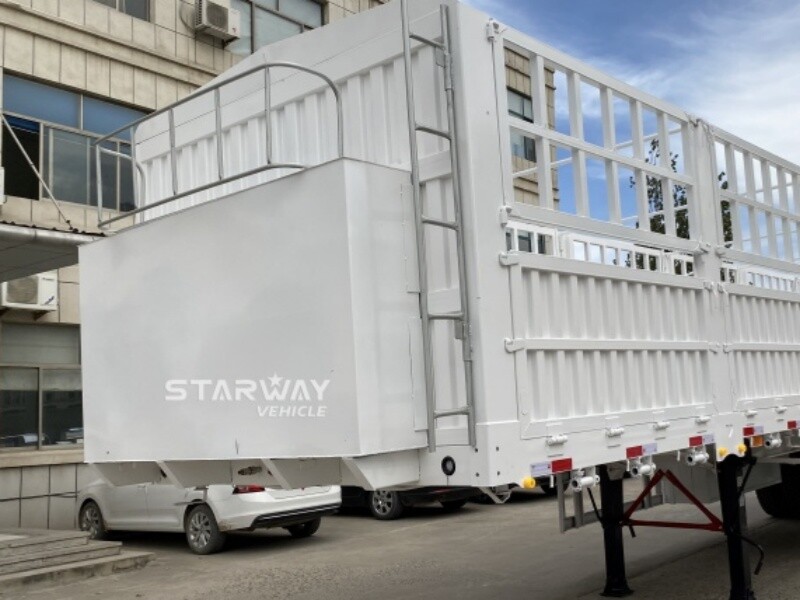

extra tanker.jpg



1000L oil taner optional

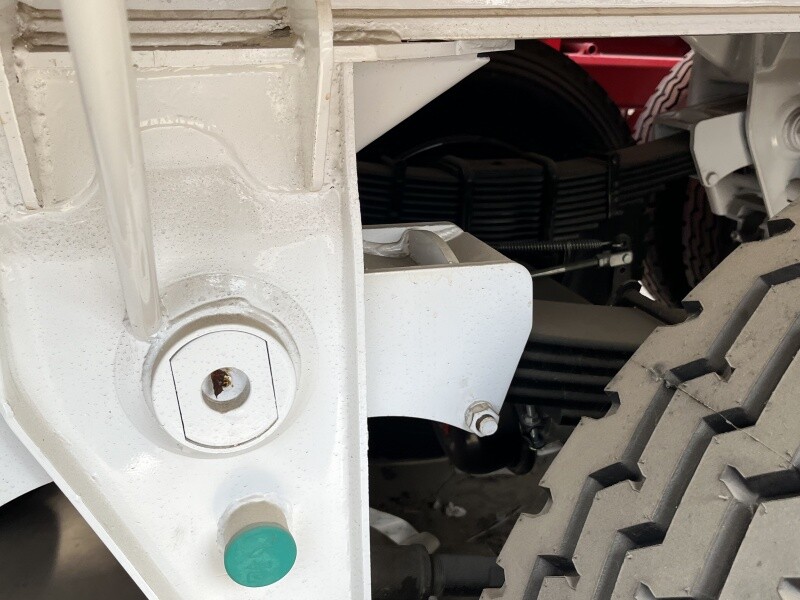

Thickened Suspension and Spring

Our mechanical suspension is made of a reinforced and thickened steel, which is more suitable for Bad road conditions, and has 20% more load bearing capacity and longer service life than ordinary mechanical suspension.


Product name : Fence cargo Semi trailer
2 Axles *3 Axles4 Axles
Application: Coal/ Livestock/Vegetable/Cargo Loading
Length*Width*Height: 1300mm*2550mm*1800mm ( total height 4500mm)
Loading Capacity: 20-40TLoading Capacity: 30-60TLoading Capacity: 40-100T
OEM/ODM: Available
SKD/CKD Cooperation: Available
Goose Type: Available
Main Beam
Material: Q345/T700
Upper Plate Thickness: 12mm-20mm
Middle Plate Thickness: 6mm-10mm
Lower Plate Thickness: 14mm-20mm
Height: 500mm
Product Size(L*W*H)
13000mm*2550mm*1800mm
Fence Height: 1800mm; can be customized
Axle(Starway Vehicle/FUWA/BPW/Other)
2 Axles *13/16 Ton3 Axles *13/16 Ton4 Axles *13/16 Ton
Tire(Linglong/Triangle/Double-Coin/Other)
12R22.5 (8 Pieces)12R22.5 (12 Pieces)12R22.5 (16 Pieces)
Rim(Steel/Aluminum)
9.00*22.5 (8 Pieces)9.00*22.5 (12 Pieces)9.00*22.5 (16 Pieces)
Leaf Spring
90mm*13mm*10/90mm*16mm*10
King Pin JOST/Other Brand)
#50(2")/#90(3.5")
Brake system
 WABCO Emergency valve
Landing Gear (JOST/Other Brand)
28 Tons Two Speed
Vehicle Painting
Electrophoresis painting

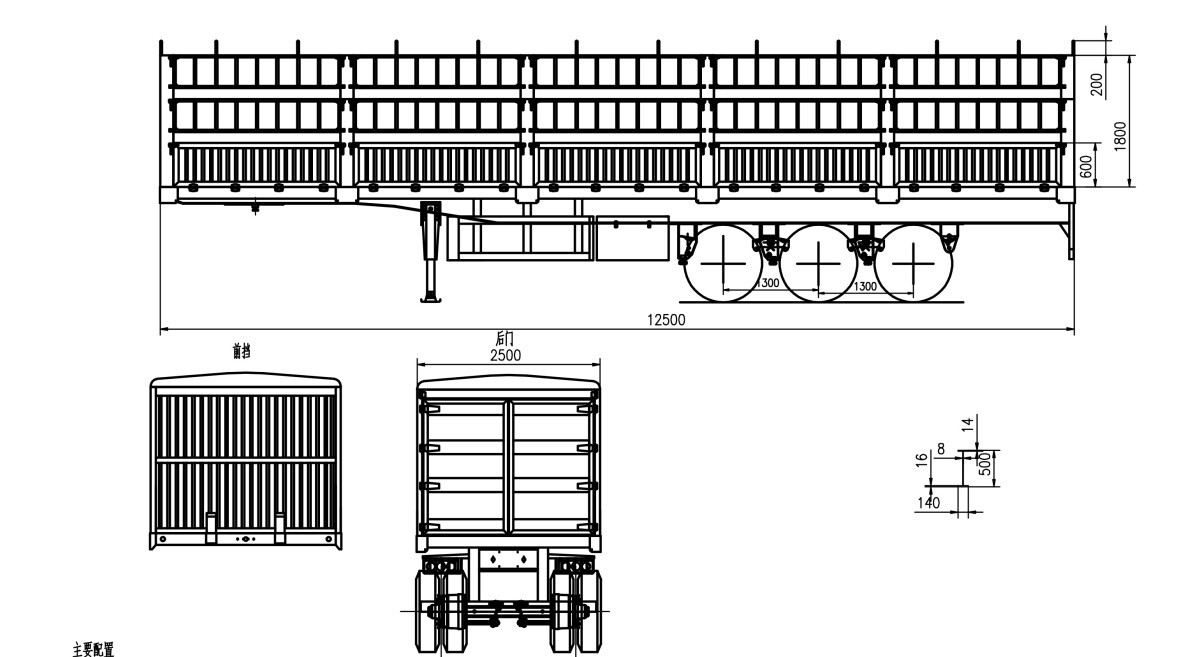

Structure diagram



Nearly 40 years of experience in making trailers for every customer!

Our strong and experienced technical team can design according to your special requirements.

More than 1200 workshop workers guarantee the delivery of the trailer!

Welcome you to visit our company at any time, guide, discuss together, we will meet you at the airport!



Packing & shipping


Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO

(1)Wax:

Do wax spray process to against the trailer body suffer seawater corrosion during shipping.

(2)Package:

Stable fixing with steel wire,to protect the trailer during shipping.

(3)Shipping:

Reliable logistic service from famous freight supplier makes transport process safely and promptly.




OUR ADVANTAGE

Intelligence Production Equipment

Improve intelligent level, and create topping quality,STARWAY VEHICLE regards topping production line and equipment as development basis for over 30 years.

Independent technology R&D

It uses international and donestic leading technology s core for 30 years,is engaged in innovation and application of new material technology and technique,realizeds upadate.

Truck Trailer Examination

Perfect Inspection equipment and advaced inspection methods,over 200 inspection items,ensure product of STARWAY VEHICLE

Production Process

Absorbs industrial intelligence of foreign and domestic advanced production lines actively, promotes innovationand update of production equipment continuously.

Welding Standard

National first-level welder supervision, with Fuil automatic welding line.30minutes more weldina time per process

Steel Standard Design

Full Thickness High Strength Steel Titanium content 0.98% Ensure toughness and strength of Trailer frame and beam.

Design Standard

42 years of research and development by Australian engineers, rational analysis,42 toughness Rib Design

Parts Standard

Accessories Matched the standards of American Transportation Association(DOT)

ABOUT US

Shandong Starway Vehicle Co.,Ltd is China′s leading provider of semi trailer solution for transportation and logistic industry. The company has been awarded Provincial Municipal Meritorious Enterprise, Star Enterprise and Advanced Enterprise. As one of top ten Enterprises of truck trailer in China, Starway Vehicle is committed to offering high quality and reliable equipment and services for modern transportation. As the leading professional semi trailer manufacturer, we provide OEM/ODM semi trailer products to customers all over the world. Every year, Starway Vehicle exports thousands of different types of semi trailers worldwide. By 2024, we have established close business relationships with customers from all over the world.

  • 2.Special Shape Automatic Welding Process.jpg
  • 3..Tanker Trailer Plate Cutting Machin.jpg
  • 4.Tanker Trailer Plate Rolling Process.jpg
  • 5..Tanker Trailer Plate Automatic Welding Machine.jpg
  • 7.Tanker Trailer Steel Plate Bending Mahince.jpg
  • 8.Tanker Trailer X-RAY Room Examination.png
MESSAGE
Submit
SIMILAR RECOMMENDED
FAQ

Q: Are you a manufacturer or trading company?

A: We are a professional semi - Trailer supplier, we produce and export ourselves.
You are welcomed to visit our factory.

Q: What kind of payment do you accept?

A: We accept T/T and L/C at most.
If you want to use others payment, contact me for more info.

Q: What's your delivery time?

A: It depends on the products.

Products: Delivery time
Low bed trailer, Container trailer, skeleton trailer, side wall trailer: 10 days
Fuel tanker trailer, bulk cement trailer: 20 days
Special trailer, like detachable gooseneck trailer, hydraulic modular trailer: 30 working days
